The steam turbine's reliability, versatility and ease of
operation make it an ideal choice to drive equipment required
for many industrial, process oriented and power generation
industries.
Dresser-Rand Inc., USA, ( DR ) is a world leader in designing
and manufacturing single-stage and multi-stage steam turbines.
Drawing on the experience of over 90 years and 80,000 installations
in nearly 100 countries, DR offers unparalleled reliability.
Proven reliability and high efficiency make Dresser-Rand steam
turbines vital partners to the process industries. Energy
conversion costs have demanded that steam turbine efficiency
be as much a consideration as reliability.
Single State Turbines
The Single Stage Turbine line includes, three wheel diameters
and seven models covering capacities upto 3,000 HP ( 2,600
KW ), in compliance with API 611 OR API 612.
Turbine
Frame |
Class |
Maximum Steam Conditions |
Maximum
Power
(hp / kw) |
Maximum
Speed
(rpm ) |
| Inlet
Pressure (psig /
barg ) |
Inlet
Temperature
(® F / ® C ) |
Exhaust
Pressure
(psig / barg ) |
|
350 |
3 |
700 / 48.3 |
775 / 413 |
150 / 10.3 |
1000 / 750 |
5,000 |
| |
5 |
700 / 48.3 |
825 / 440 |
150 / 10.3 |
1000 / 750 |
5,000 |
|
500 |
3 |
700 / 48.3 |
775 / 413 |
150 / 10.3 |
3500 / 2600 |
7,950 |
| |
5 |
700 / 48.3 |
825 / 440 |
150 / 10.3 |
3500 / 2600 |
7,950 |
|
500
H |
3 |
700 / 48.3 |
775 / 413 |
300 / 20.6 |
3500 / 2600 |
12,000 |
| |
5 |
700 / 48.3 |
825 / 440 |
300 / 20.6 |
3500 / 2600 |
12,000 |
|
700 |
3 |
700 / 48.3 |
775 / 413 |
75 / 5.2 |
3500 / 2600 |
6,150 |
| |
5 |
700 / 48.3 |
825 / 440 |
75 / 5.2 |
3500 / 2600 |
6,150 |
|
700
H |
3 |
700 / 48.3 |
775 / 413 |
150 / 10.3 |
3500 / 2600 |
5,350 |
| |
5 |
700 / 48.3 |
825 / 440 |
150 / 10.3 |
3500 / 2600 |
5,350 |
|
700
HS |
6 |
900 / 62.1 |
900 / 482 |
150 / 10.3 |
3500 / 2600 |
5,250 |
|
700
LP |
3 |
400 / 27.6 |
775 / 413 |
75 / 5.2 |
3500 / 2600 |
6,150 |

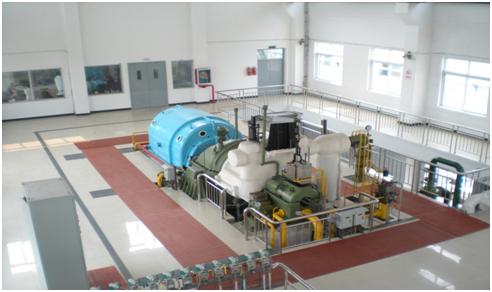

Multi Stage Turbines
Some of the salient features of DR multi-stage
steam turbines are:
- Rugged casing design
- Horizontally split casing
- Automatic control valves for maximum
efficiency
- Customised stationary steam path
components
- Blading designed for performance
& reliability
- Tailor made rotors to suit any application
- Governing controls precision matched
to each requirement
- Shaft packing for increased steam
path efficiency
- Custom engineering for applications
upto 102 MW.
- Speeds upto 20,000 RPM
- Inlet pressure upto 2,000 psig
- Inlet temperature upto 1050® F
- Exhaust pressure upto 800 psig or
condensing
The Multi Stage Turbine line includes,
three wheel diameters and seven models covering capacities
upto 70,000 HP ( 52,220 KW ), in compliance with API 611 OR
API 612.
| |
|
Maximum Steam Conditions |
|
|
|
Turbine
Frame |
Class |
Inlet
Pressure (PSIG/BARG) |
Inlet
Temperature (® F / ® C ) |
Exhaust
Pressure (PSIG/BARG) |
Maximum
Power
(HP / KW ) |
Maximum
Speed (RPM) |
|
S2
to 9S |
3 |
700 / 48.3 |
775 / 400 |
160 / 11 |
7,000
/ 5,300 |
8,000 |
|
5 |
700 / 48.3 |
825 / 440 |
160 / 11 |
|
|
|
TS2
to
TS8 |
3 |
700 / 48.3 |
775 / 400 |
160 / 11 |
7,000
/ 5,300 |
5,700 |
|
5 |
700 / 48.3 |
825 / 440 |
160 / 11 |
|
|
|
T2
to 9T |
3 |
700 / 48.3 |
775 / 400 |
60 / 4.1 |
7,000
/ 5,300 |
5,700 |
|
5 |
700 / 48.3 |
825 / 440 |
60 / 4.1 |
|
|
|
2TCS
to 7TCS (10" inlet) |
1 |
300 / 21 |
775 / 315 |
60 / 4.1 |
7,000
/ 5,300 |
5,700 |
|
2TCS
to 7TCS
(12" inlet ) |
3 |
200 / 14 |
775 / 315 |
60 / 4.1 |
7,000
/ 5,300 |
5,700 |
|
